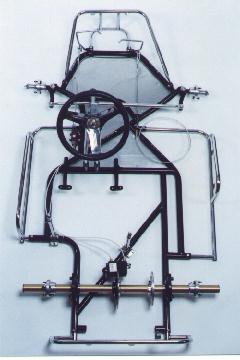

DO (Dirt Oval)

Frame:
K-Frame True 6" Offset Front & Rear for Increased Left Side Weight

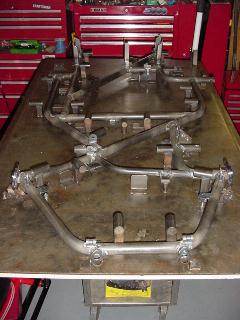

1 1/8" OD 4130 chromemoly Quality TIG welded on our Precision Frame Jig
Outboard Motor Mount for Reduced Engine Flex
Narrow Rear Frame Rails
Increased Ride Height for Better Side Bite
Ideal for rough track situations or extremely slick tracks
1/8" Tilt for Increased Corner Entry Speed
1/4" Rake for Increased Forward Bite
Paint -Black only(custom colors and powdercoat optional)

Nerf Bars & Bumpers:
4130 chromemoly, double rail nerfs
Adjustable Spud mounts, not crimped
Show quality chrome; or popular Black Max option

Seat:
G-Man Superseat -Injection molded plastic Rookie-XLG
Adjustable seat slides and struts manufactured from 4130 chromemoly with quality rod ends

Treadwidth: Adjustable front and rear

Wheelbase: 41"

O.A.L.: 68"

Dry Weight: 84# (incl. seat, wheels, and tires)

Spindles:
Adjustable caster
Adjustable camber via shims
Laser-cut adjustable ackerman steering arms
High king pin inclination

Kingpins: 3/8" Threaded adjustable for weight jacking (No more fooling with washers)

Tie-Rods: 3/8" Swaged aircraft quality Vector aluminum tie-rods

Brakes:
MCP lightweight billet hub
Lightweight MCP slotted rotor
Mounted inboard (centerline of chassis) for straight line braking and no chassis bind

Rear axle:
34" 1 1/4" Tubular aluminum or chromemoly with snaprings and opposed keyways
CNC Billet aluminum hardened anodized axle cassettes (adjustable cassettes optional)
Ultra-free spin oil filled bearings
Lightweight billet sprocket hub
Lightweight billet wheel hubs

Wheels: DOUGLAS Q+ machined 6" diameter

Tires: Choice of brand, size, and compound Hoosier, Burris, or Maxxis

Hardware: Quality hardware drilled & safety-wired





(new photos coming soon)

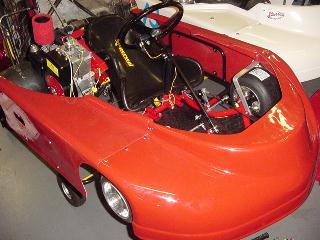

AO3 (Asphalt & Dirtphault/High Grip Oval)

Frame:
-Frame True 3.5" Offset Front & Rear for Increased Left Side Weight
Cad/Cam designed & CNC computerized bending
1 1/4" OD 4130 chromemoly Quality TIG welded on our Precision Frame Jig
Reinforced motor mount for reduced engine flex
Wide ride frame rails frees up corner speed on sticky race surfaces
Adjustable ride height for controlling Side Bite
Ideal for pavement or "dirtphault," low to high grip ovals
Powdercoat -Black only (custom color powdercoat optional)

Nerf Bars & Bumpers:
4130 chromemoly full coverage rear bumper, double rail nerfs, and low profile front bumper to accommodate even the lowest noses.
Adjustable Spud mounts, not crimped
Black Max "ultra-tuff" coating

Seat:
Vector spec'ed low VCG fiberglass seats Rookie-XLG
Adjustable seat slides and struts for quick and easy seat and proper weight placement

Treadwidth: Adjustable front and rear

Wheelbase: split & adjustable

O.A.L.: 68"

Dry Weight: 105# (incl. seat, wheels, and tires)

Steering Wheel:
Custom oval "cut-out" black wheel (other colors and tilt wheel optional)

Spindles:
Adjustable caster
Adjustable camber via heims & "L" bracket
Laser-cut adjustable ackerman steering arms
Special kingpin inclination

Kingpins: ultra-duty 1/2"
also available: adjustable kingpins for weight jacking without removing a tire

Tie-Rods: 3/8" Swaged aircraft quality Vector aluminum tie-rods

Brakes:
MCP lightweight 3-bolt billet hub
Lightweight MCP mini-light slotted rotor
MCP full size caliper to stop most any class engine
Mounted inboard (centerline of chassis) for straight line braking and no chassis bind

Rear axle:
34" 1 1/4" Tubular chromemoly with snaprings and location specific keyways
CNC Billet aluminum hardened anodized axle cassettes (adjustable left rear standard)
Ultra-free spin oil filled bearings (ceramics optional)
Lightweight billet sprocket hub
Lightweight billet wheel hubs(double locking right rear hub optional)

Wheels: DOUGLAS Q+machined one-piece or Outlaw black 6" diameter

Tires: Choice of brand, size, and compound Hoosier, Burris, or Maxxis

Hardware: Quality hardware drilled & safety-wired

2010 Basic Chassis $2050
(includes frame, seat, & steering wheel - no wheels or tires)

2010 Complete Roller $2550
(includes wheels, tires, seat, & steering wheel)

2010 Kit $850
(includes unpainted frame, nerfs, bumpers)
